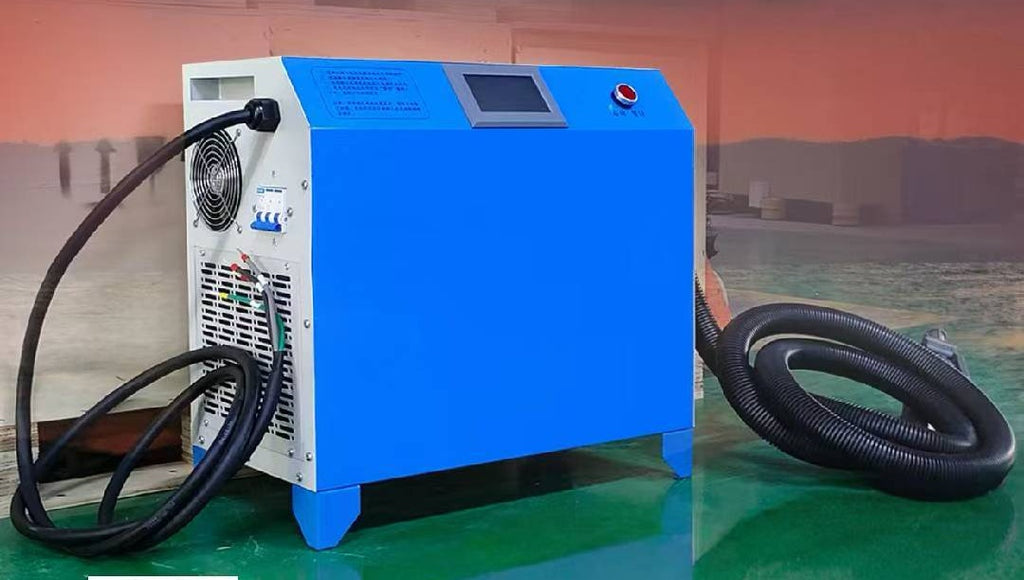

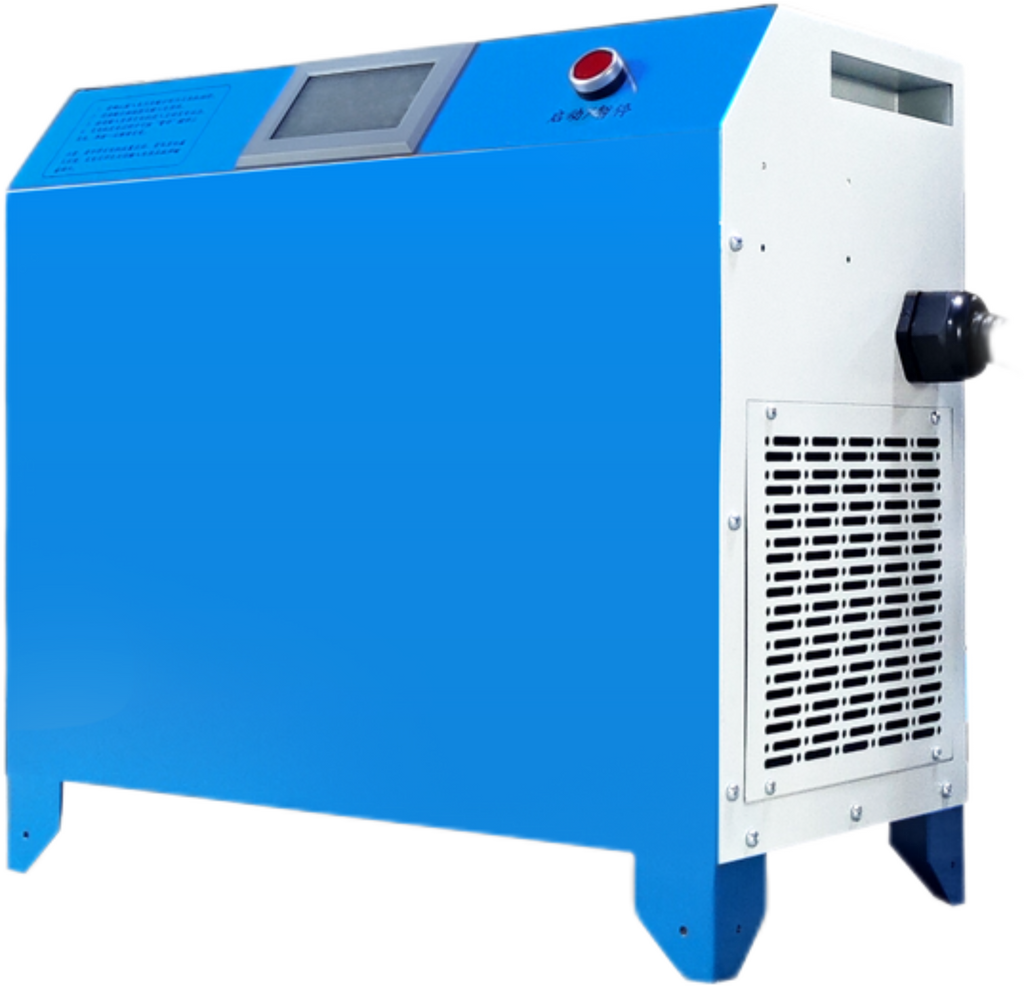

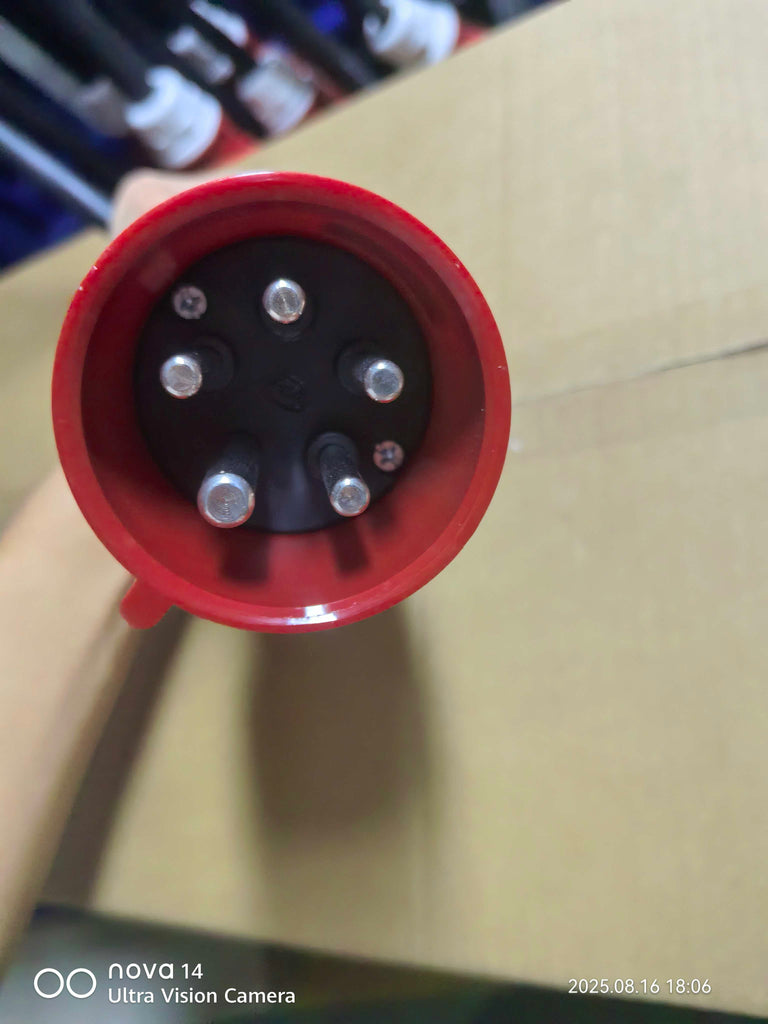

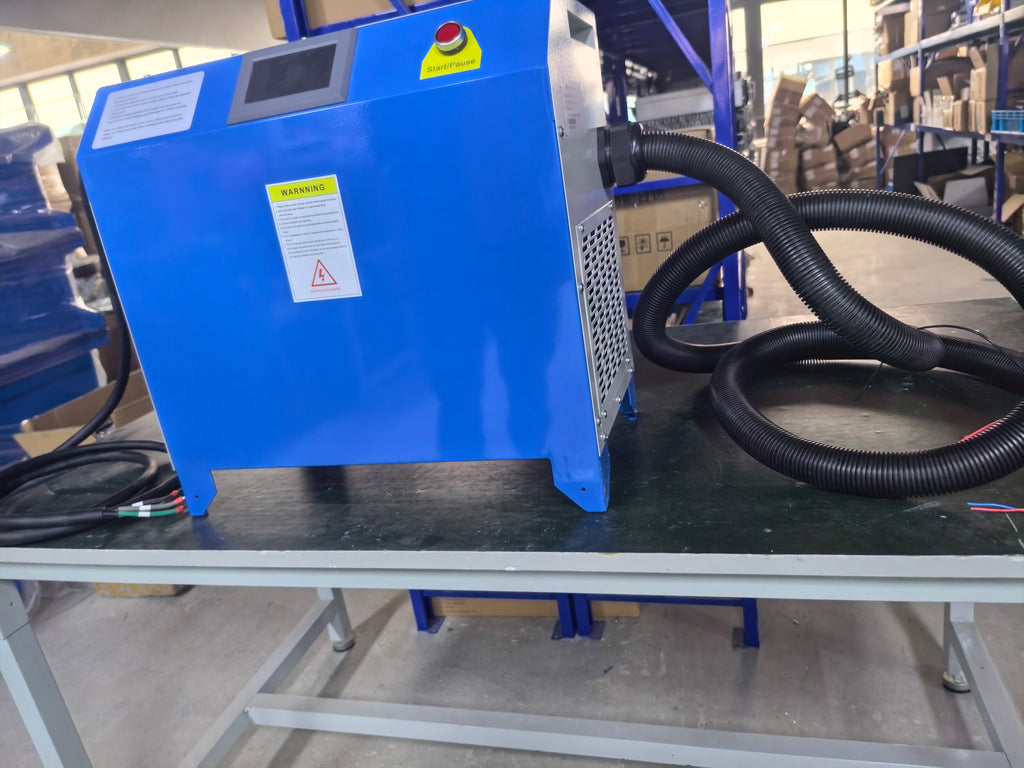

This stationary charger is designed for Lithium LFP batteries (200–3000AH), with one set of universal AC industrail plug/socket (3P 380V) and a fixed DC output of Rema 320 Red Connector for One Set (Male and Female).
Technical Parameters
- Model
- BSL48V100A
- Electrical Input
-
- Input Voltage Range:3-phase 400V AC ±10% (360–440V AC), 50Hz/ 3-phase 480V AC ±10% (432–528V AC), 60Hz
- Frequency: 50/60Hz
- Input phase current range (A): ≤12A
- Output Specification
-
- Output Voltage: 48V DC
- Output Current: 100A
- Battery Compatibility
-
- Battery Type: 15S 58.4V Lithium LFP 48V 200-300AH battery
- Battery Rating: 15S 48V nominal voltage, 200–300AH capacity/Or with 48V100Ah with 1C charging capability
- Weight & Size
-
- Weight: 20KG
- Size: L×W×H = 20.55 × 10.24 × 17.44 inch
Advantages
-
Global Voltage Adaptability
Operates across an 380Vac and 480Vac (50/60Hz) AC input range, ensuring compatibility with EU or US power grids.
-
Energy-Saving Efficiency
- Power Factor ≥0.95 and Efficiency ≥93%: Minimizes energy loss, reducing electricity costs and meeting strict energy regulations.
-
Quiet & Discreet Operation
Produces ≤65dB noise, making it ideal for noise-sensitive environments (e.g., offices, homes, or indoor industrial spaces).
-
Rugged Durability
- IP20 Protection: This charger delivers targeted safeguards for dry indoor environments: it features a touch-safe design to shield internal components from accidental contact with fingers or large objects (≥12.5mm) (reducing electric shock hazards during use or maintenance), blocks coarse particulate matter for reliable performance in clean settings like workshops, offices, or equipment enclosures, and maintains a compact, lightweight build (no heavy waterproofing) ideal for cabinet/rack integration—perfect for indoor industrial cabinets, office equipment rooms, and dry workspaces with controlled moisture and fine dust..
-
Advanced Thermal Management
The charger features over - temperature protection: it shuts down when the temperature reaches a maximum of 85℃ and enters derating mode when the temperature exceeds 45℃.
-
Comprehensive Safety
Five built-in protections:
- Overheat
- Reverse polarity
- No-load
- Short-circuit
- Automatic shutdown
These prevent equipment damage and ensure user safety in critical scenarios.
-
Easy Adjustment

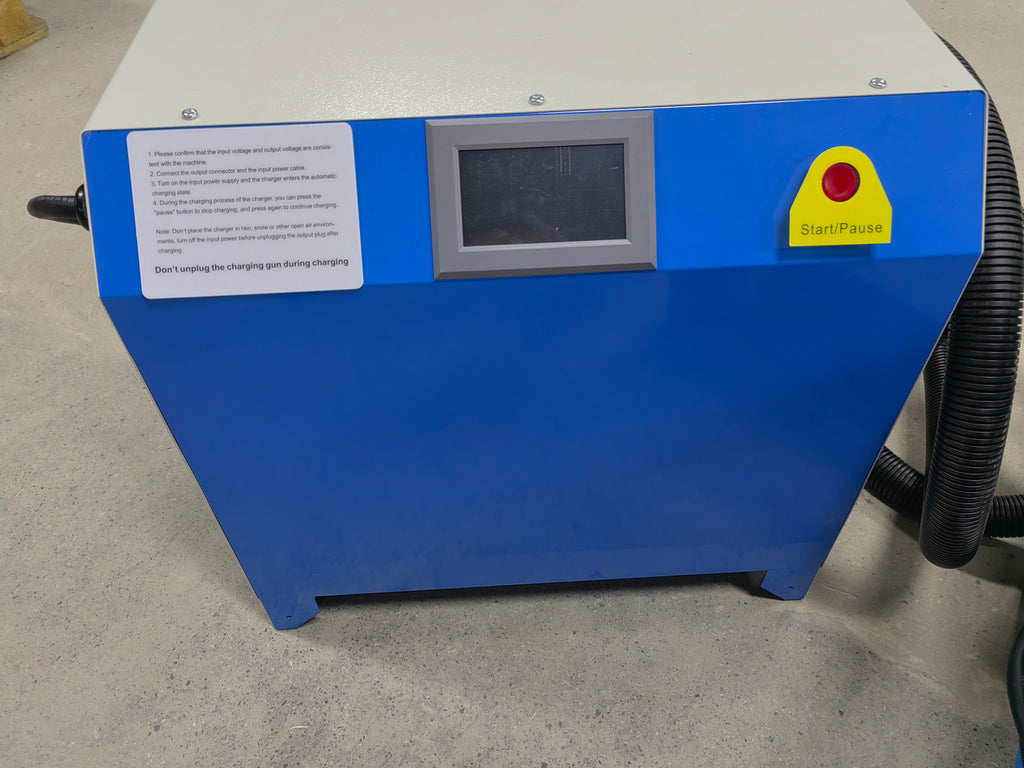

A touch-sensitive LCD screen enables quick adjustment of charging parameters (such as voltage and current) in just a few minutes.
Custom Products
Tell Us What You Want To Customize
For customization inquiries, please contact us via email: smz@bslpower.cn
