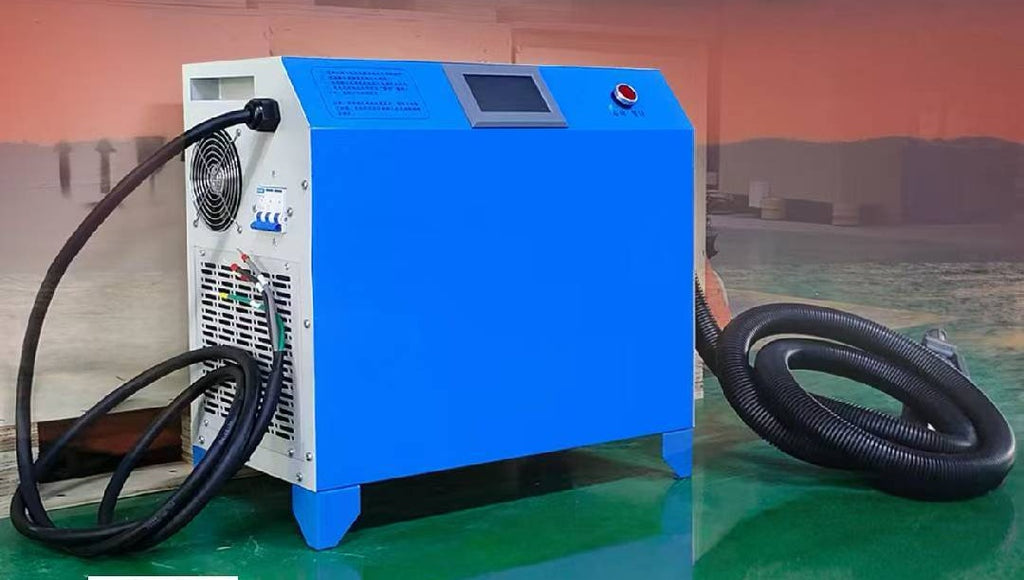

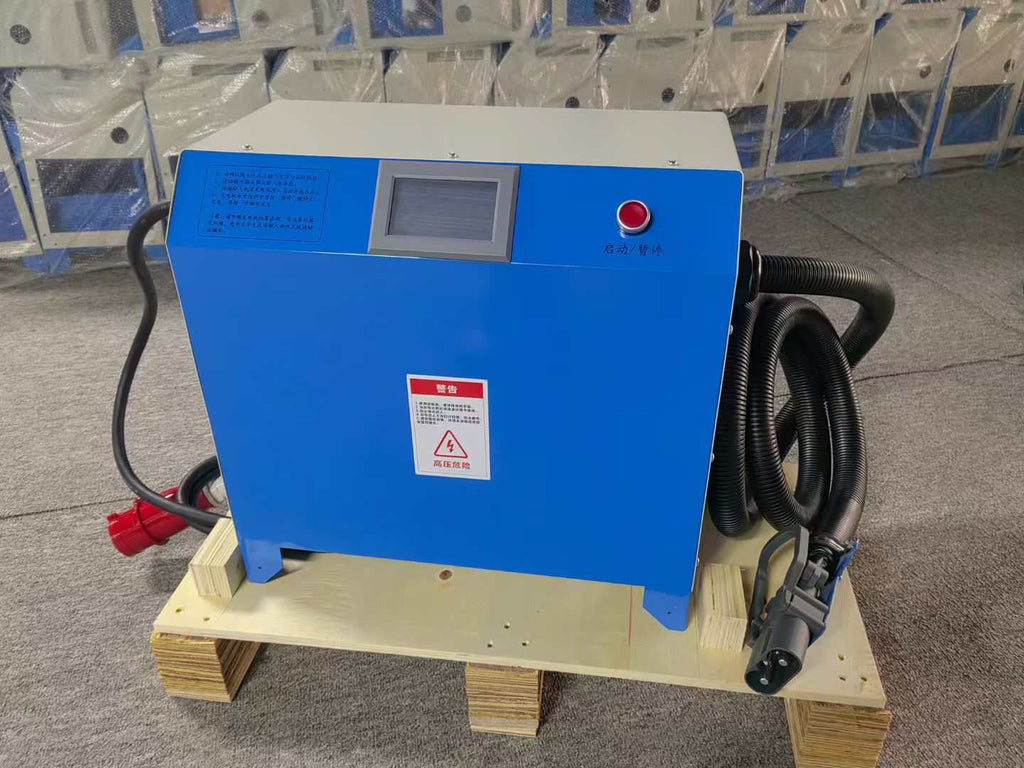

This high-power industrial charger (Model: 48V200A, 10KW) is designed for high-demand scenarios such as industrial equipment, large-scale energy storage systems, and heavy-duty electric vehicles. It features a three-phase four-wire 380V AC input, a maximum DC output current of 200A, and adopts air cooling for stable operation. With IP20 protection level and comprehensive safety safeguards, it excels in harsh industrial environments with a working temperature range of -35~50°C.
Technical Parameters
- Model
- BSL48V200A (10KW Charger)
- Machine Characteristics
-
- Maximum Output Power: 10000W
- Machine Efficiency: ≥93.0%
- Altitude: 2000m
- Working Environment Temperature: -35 ~ 50°C
- Storage Ambient Temperature: -40 ~ 70°C
- Protection Level: IP20
- Cooling Method: Air Cooling
- Input Characteristics
-
- Phase: Three-phase four-wire 380V
- Waveform: Sinusoidal
- Input Voltage Range (VAC): Phase voltage 150~264V, Line voltage 260~457V
- Input Frequency Range: 45 ~ 65Hz
- Input Phase Current Range: ≤22A
- Power Factor: ≥0.99@full load
- Recommended Input Wire Diameter: ≥6mm² (or ≥9 AWG)
- Output Characteristics
-
- Output Voltage Range Limit: 60VDC
- Output Voltage Setting Error: ±0.4V
- Output Current Setting Error: ±1.5A
- Ripple Vrms: ≤200mV
- Maximum Output Current: 200A
- Recommended Output Wire Diameter: ≥70mm² (or ≥2/0 AWG)
- Protective Function
-
- Output Overvoltage Protection: Cuts off output relay and alarms when output voltage exceeds internal setting.
- Output Overcurrent Protection: Cuts off output relay and alarms when load current exceeds protection value.
- Input Over/Under Protection: Adapts to input voltage (200Vac↓: built-in formula; 150~160Vac: minimum current output; 150Vac↓: stops & alarms).
- Temperature Protection: ① Reduces current when internal temp exceeds set value; stops & alarms at 85±2°C, resumes (derated) at 45±2°C. ② Stops & alarms at -40±2°C, resumes at -35±2°C.
- Short Circuit Protection: No output & alarms when output is short-circuited.
- No-load Protection: Alarms if battery voltage is undetected or below 1/3 of rated voltage.
- Extensions
-
- Touch Screen: Yes
- CAN-bus: Optional
- Aux Power: 12V/60W (MAX 5A)
- External Indicator: Yes, customizable per customer requirements
- Safety and EMC Performance
-
- Insulation Dielectric Strength: Input-output/input-outer casing: 3750VAC (basic insulation, <10mA); Output-outer casing: 1000VAC (basic insulation, <10mA).
- Insulation Resistance: Input-output/input-outer casing/output-outer casing: ≥20MΩ (500VDC).
- Protective Conductor Resistance: ≤0.1Ω
- Leakage Current: ≤0.5mA
- Surge Immunity: LN: 4kV (interval 1min)
- Electrical Fast Transient (EFT) Burst Immunity: AC input port: 4kV (Level 4 / 5kHz); Other ports: 2kV (Level 3 / 100kHz)
- Physical Characteristics
-
- Way Out: One end outlet
- Weight (Excluding Wire Harness): 29KG
- Dimensions (L×W×H): 520×280×500mm
Advantages
-
High-Power & Efficient Performance
Delivers 10KW maximum output power and 200A maximum output current, meeting high-demand charging needs of industrial equipment. With ≥93.0% efficiency and ≥0.99 power factor@full load, it minimizes energy loss and reduces operational costs.
-
Wide Environmental Adaptability
- Works at altitudes up to 2000m and in -35~50°C working temperature, suitable for diverse geographical and climatic conditions (e.g., high-altitude industrial areas, cold regions).
- Storage temperature ranges from -40~70°C, ensuring stable preservation in extreme environments.
-
Stable & Reliable Cooling
Adopts air cooling design, which effectively dissipates heat during high-power operation, maintaining internal component stability and extending the charger’s service life.
-
Comprehensive Safety Protections
- Integrates 6 key protections (output overvoltage/overcurrent, input over/under voltage, temperature, short circuit, no-load) to prevent equipment damage and ensure user safety in critical scenarios.
- Complies with strict safety standards: Low leakage current (≤0.5mA), high insulation resistance (≥20MΩ), and strong surge/EFT immunity, avoiding electrical hazards and interference.
-
Flexible Smart Expansion
- Built-in touch screen for intuitive operation and real-time monitoring; optional CAN-bus enables seamless integration into automated industrial systems for remote control and data transmission.
- 12V/60W auxiliary power supports power supply for small peripheral devices; customizable external indicators meet personalized monitoring needs.
-
Robust Structural Design
Sturdy build with 29KG weight and compact dimensions (520×280×500mm) balances stability and space efficiency. One-end outlet design simplifies wiring and installation in industrial sites.
-
Wide Voltage Compatibility
Accepts 150~264V phase voltage (260~457V line voltage) input, adapting to unstable or diverse industrial power grids, avoiding shutdowns caused by voltage fluctuations.
```
